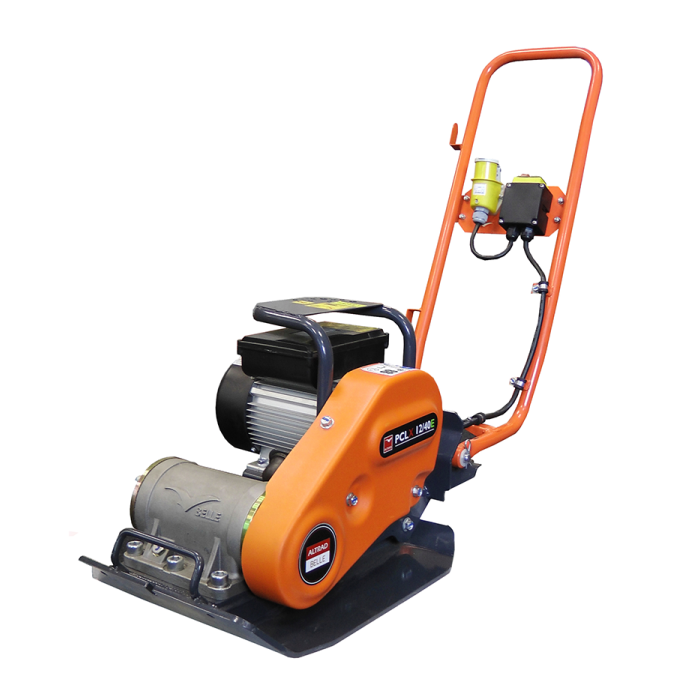

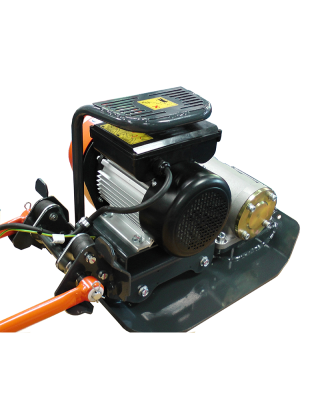

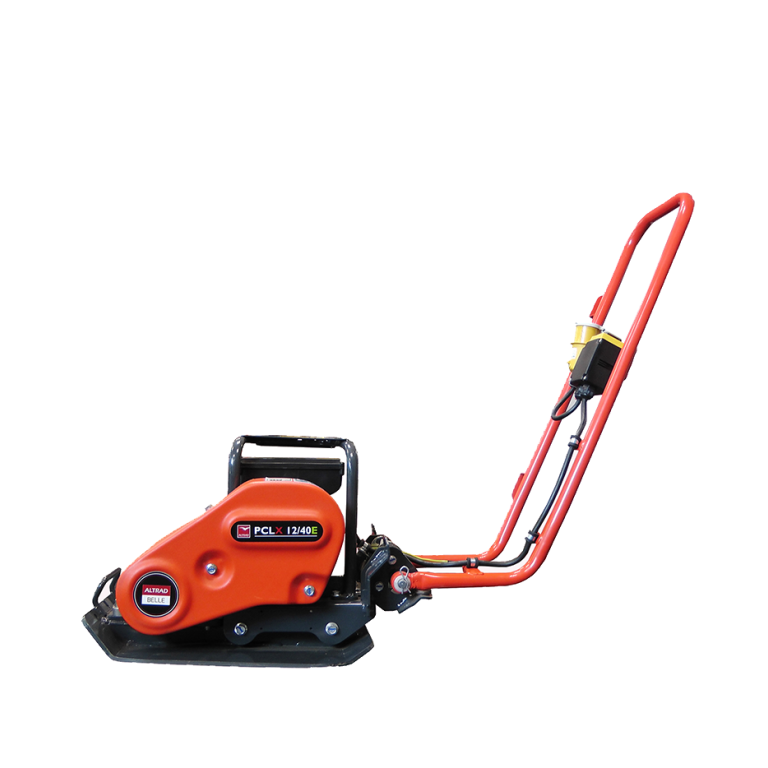

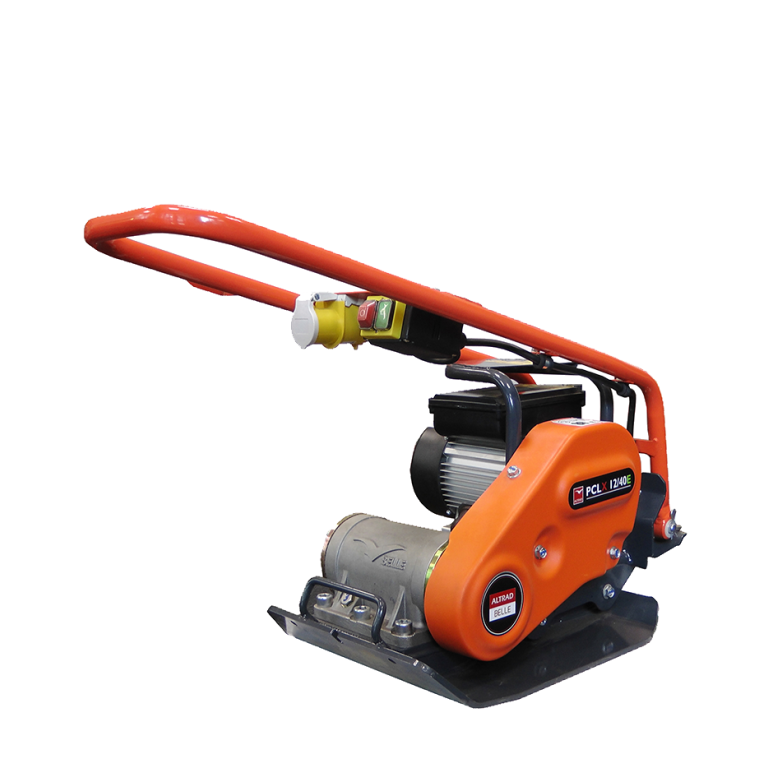

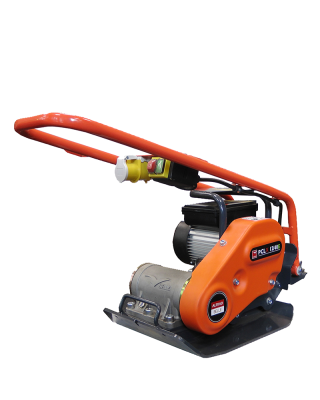

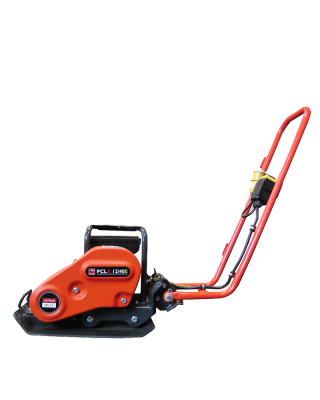

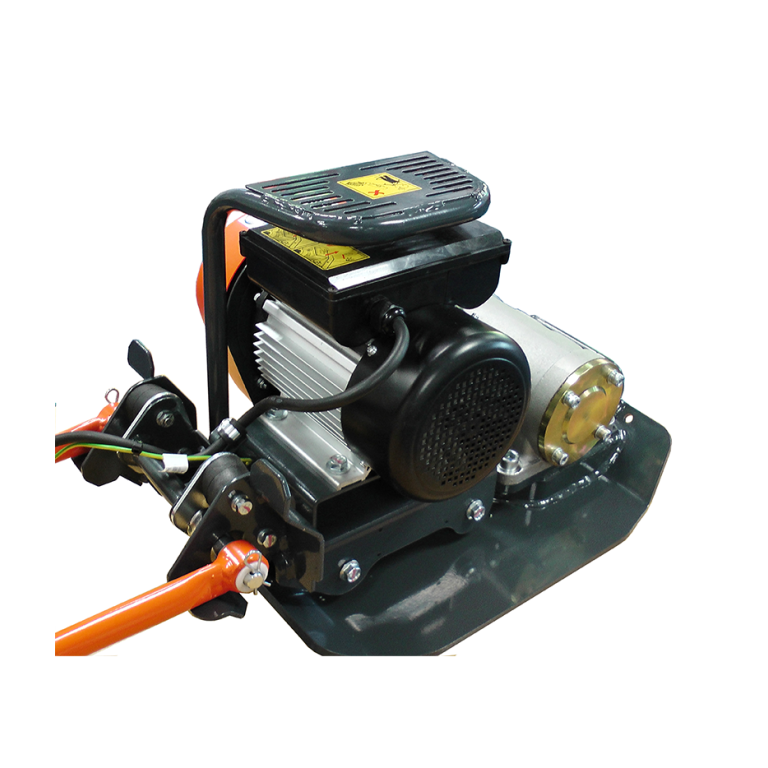

Altrad Belle 15” PCLX 12/40E Plate Compactor (12kN) – 110/230V

Altrad Belle 15” PCLX 12/40E Plate Compactor (12kN) – 110/230V

£1,014.00
£845.00 Exc. VAT
RRP £1,545.60 Inc. VAT

In stock

The PCLX 12/40 E is a professional, lightweight and environmentally friendly electric plate compactor.

It features a high performance 12kN vibration unit which produces both excellent travel speed and compaction force. It has been engineered to withstand the rigours of rental and heavy contractor use.

The PCLX12/40E however is not just the reserve seeking a plate for indoor use because it does not exhaust hazardous fumes like its petrol powered counterparts. It is also gaining increasing popularity in its own right as a viable to alternative to petrol powered counterparts because it is cheaper to run, more reliable, virtually maintenance free, lighter in weight and quieter to use.


The PCLX12/40E is Class 1 Earthed Appliance and is suitable for use with compatible extension leads up to 25m in length.

PCLX12/40E-110V (1ph Electric) – (2.0Hp/1.5kW). 380mm wide. 12kN centrifugal force. 24m/min travel speed. 50kg.

PCLX12/40E-230V (1ph Electric) – (2.0Hp/1.5kW). 380mm wide. 12kN centrifugal force. 24m/min travel speed. 50kg.

Why not add an optional paving pad to your purchase for maximum versatility and product utilisation?

Choose a Option
PCLX 12/40E - 110V
£1,014.00
£845.00 Exc. VAT
RRP £1,545.60 Inc. VAT
Qty:-
+
PCLX 12/40E - 230V
£1,014.00
£845.00 Exc. VAT
RRP £1,545.60 Inc. VAT
Qty:-
+
Add Paving Pad
Qty:-+
Add PAT Testing Rig
Qty:-+

(Delivery calculated at checkout)

SKU: PCLX12/40E
Share:

The PCLX12/40E is environmentally friendly with zero exhaust emissions.

It is ideally suited for use in basement construction and noise sensitive areas too.

It features an integrated motor protection guard together with front and rear manual handling points which permit an easy 2-man lift, together with a professional 16amp power inlets for effective cable management and a centrifugal clutch for soft start and reduced current surge.

Its 8mm thick long life baseplate provides both optimum compaction with reliability, whilst its high performance 10.5kN vibration unit provides a good rate of compaction and travel speed. The same sealed oil-filled vibration unit has top quality bearing for enhanced reliability and durability.

The ultra-low folding low vibration operators handle of the PCLX12/40E can also be quickly and easily removed for ease of transportation and storage.

PCLX 12/40E-110V PCLX 12/40E-230V
MPN LCE4001 LCE4002
Voltage 110V (50Hz) 230V (50Hz)
Nett Power 2.0Hp/1.5kW 2.0Hp/1.5kW
Minimum Transformer 3.3kVA N/A

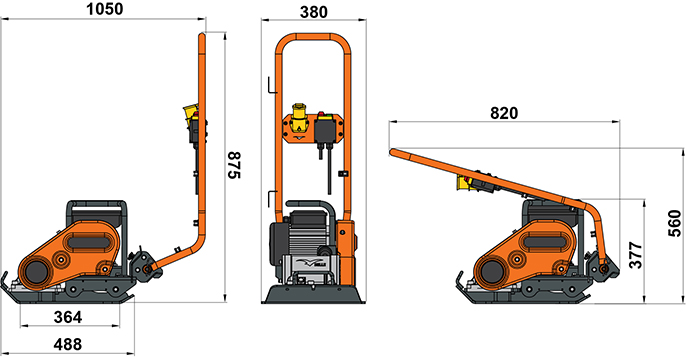

Plate Size 380 x 364mm (W x L) 380 x 364mm (W x L)
Width 380mm 380mm
Static Pressure 388kg/m² 388kg/m²
Centrifugal Force 12kN 12kN
Travel Speed 24m/min 24m/min
Vibration Level 3.97m/sec²** 3.97m/sec²**
Weight 50kg* 50kg*
Our Price (Exc.VAT) £845.00 £845.00

*Optional paving pad not included

**OPERC independent testing/vibration levels tested to BS5349 using EN500-4
