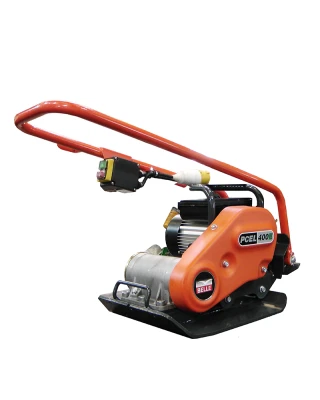

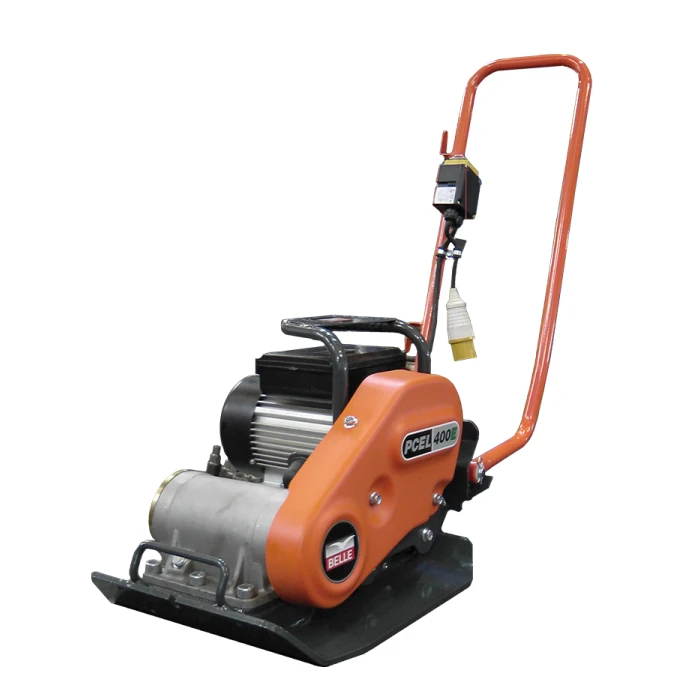

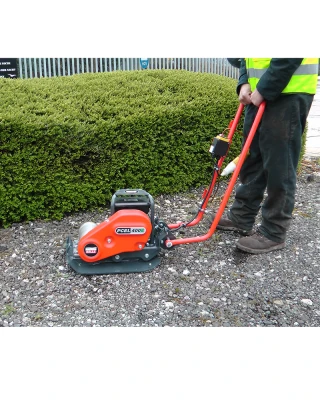

Altrad Belle 15” PCEL 400E Plate Compactor (10.5kN) – 110/230V

Altrad Belle 15” PCEL 400E Plate Compactor (10.5kN) – 110/230V

£948.00
£790.00 Exc. VAT
RRP £1,389.60 Inc. VAT

Contact For Availability

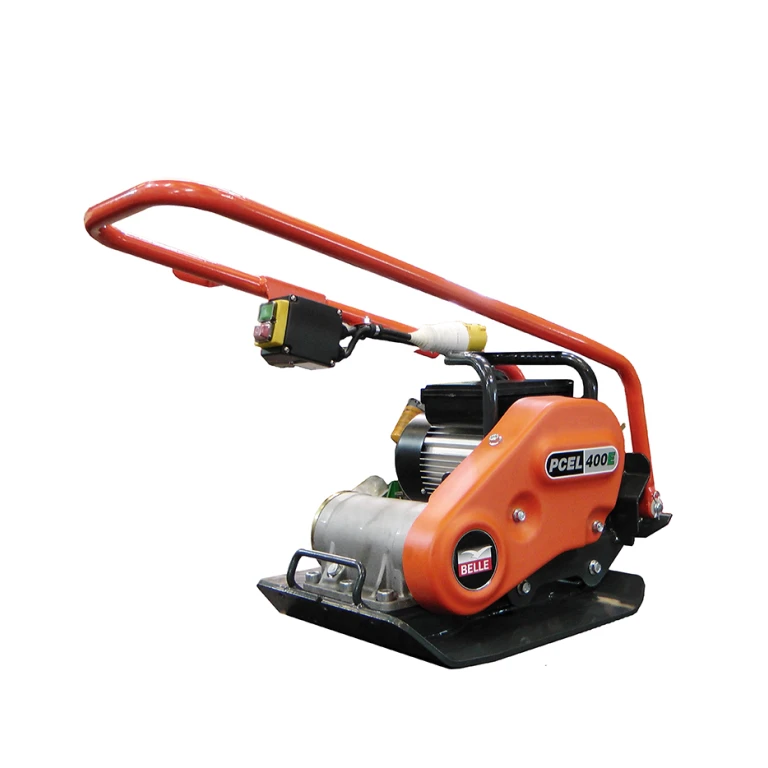

The PCEL 400 E is a lightweight, durable, environmentally friendly electric plate compactor.

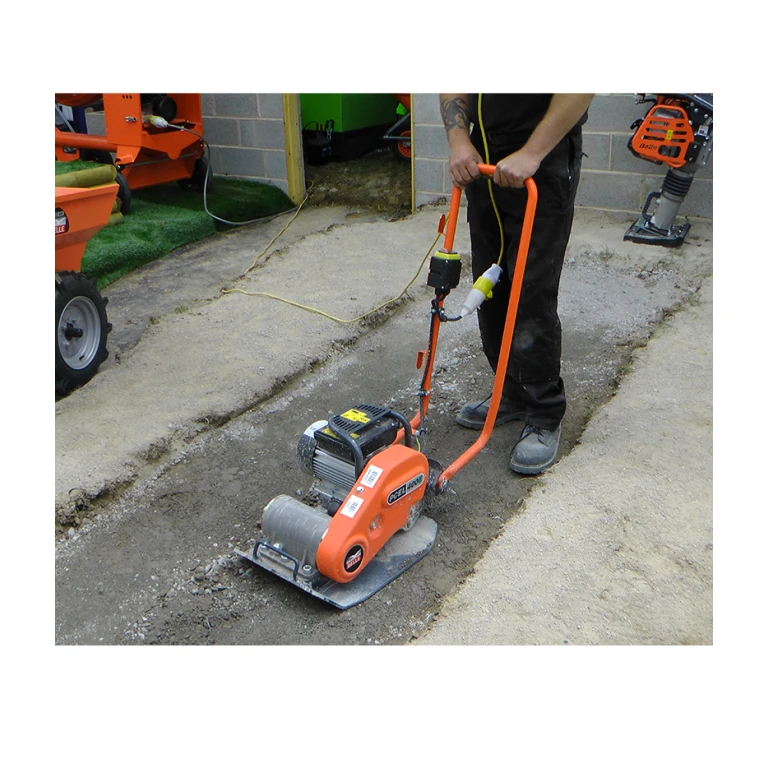

The PCEL400E however is not just the reserve seeking a plate for indoor use because it does not exhaust hazardous fumes like its petrol powered counterparts. It is also gaining increasing popularity in its own right as a viable to alternative to petrol powered counterparts because it is cheaper to run, more reliable, virtually maintenance free, lighter in weight and quieter to use.


The PCEL400E is Class 1 Earthed Appliance and is suitable for use with compatible extension leads up to 25m in length.

PCEL400E-110V (1ph Electric) – (0.8Hp/0.6kW). 380mm wide. 10.5kN centrifugal force. 18m/min travel speed. 48.5kg.

PCEL400E-230V (1ph Electric) – (0.75Hp/0.55kW). 380mm wide. 10.5kN centrifugal force. 18m/min travel speed. 48.5kg.

Why not add an optional paving pad to your purchase for maximum versatility and product utilisation?

Choose Your Voltage
Belle PCEL 400E - 110V
£948.00
£790.00 Exc. VAT
RRP £1,389.60 Inc. VAT
Qty:-
+
Belle PCEL 400E - 230V
£948.00
£790.00 Exc. VAT
RRP £1,389.60 Inc. VAT
Qty:-
+
Add Optional Extra's
Altrad Belle Paving Pad (OPP/82/DIO)
£111.18
£92.65 Exc. VAT
RRP £1,389.60 Inc. VAT
Qty:-
+
Altrad Belle Paving Pad (OPP/82/DIO)
Altrad Belle PAT Testing Rig
£163.20
£136.00 Exc. VAT
RRP £1,389.60 Inc. VAT
Qty:-
+
Altrad Belle PAT Testing Rig

Contact For Availability

SKU: PCELE
Share:

The PCEL400E is environmentally friendly with zero exhaust emissions.

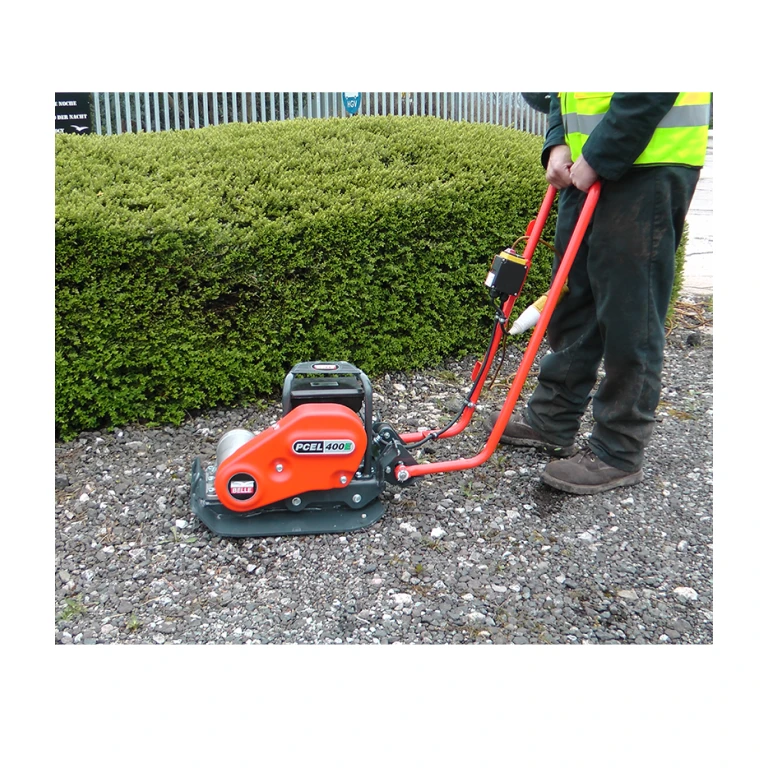

It is ideally suited for use in basement construction and noise sensitive areas too.

It features an integrated motor protection guard together with front and rear manual handling points which permit an easy 2-man lift.

Its 8mm thick long life baseplate provides both optimum compaction with reliability, whilst its high performance 10.5kN vibration unit provides a good rate of compaction and travel speed. The same sealed oil-filled vibration unit has top quality bearing for enhanced reliability and durability.

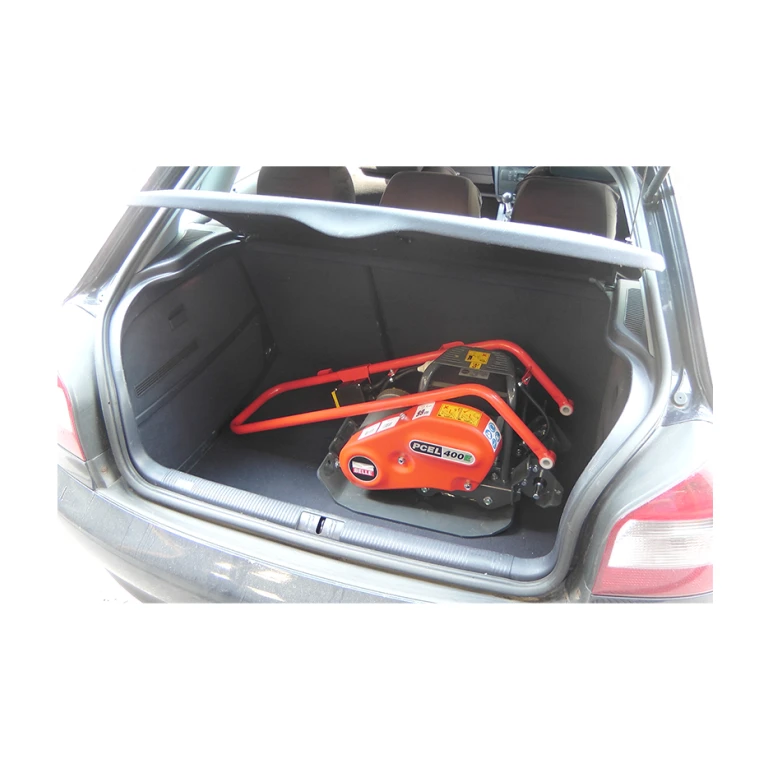

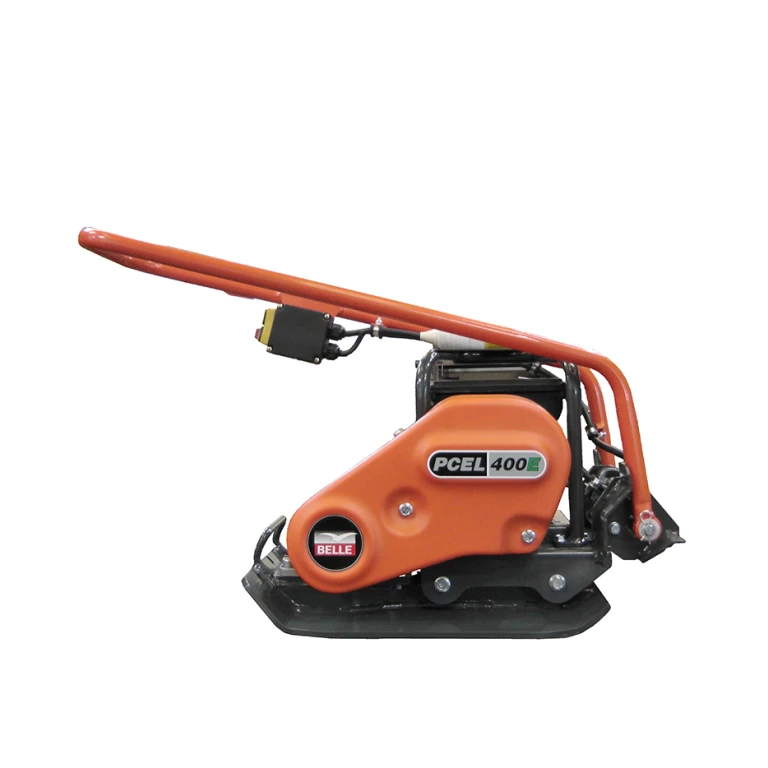

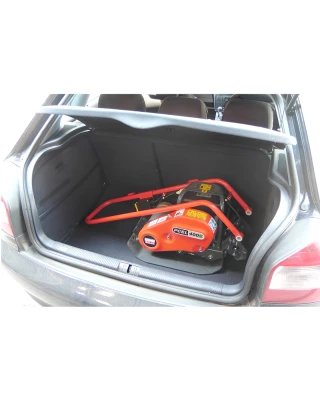

The ultra-low folding low vibration operators handle of the PCEL400E can also be quickly and easily removed for ease of transportation and storage.

  PCEL400E-110V PCEL400E-230V
MPN ELE4001 ELE4002
Voltage 110V (50Hz) 230V (50Hz)
Motor Power 0.8Hp/0.6kW 0.75Hp/0.55kW
Minimum Transformer 3.3kVA N/A
Plate Size 380 x 364mm (W x L) 380 x 364mm (W x L)
Plate Width 380mm 380mm
Static Pressure 376kg/m² 354kg/m²
Centrifugal Force 10.5kN 10.5kN
Travel Speed 18m/min 18m/min
Vibration Level 4.43m/sec²** 4.43m/sec²**
Weight 48.5kg* 48.5kg*

*Optional paving pad not included
**Vibration levels tested to BS5349 using EN500-4
