Baron F80 Forced Action Mixer – 110 or 240V

Baron F80 Forced Action Mixer – 110 or 240V

From £2,545.20
From £2,121.00 Exc. VAT
RRP £3,282.00 Inc. VAT

In stock

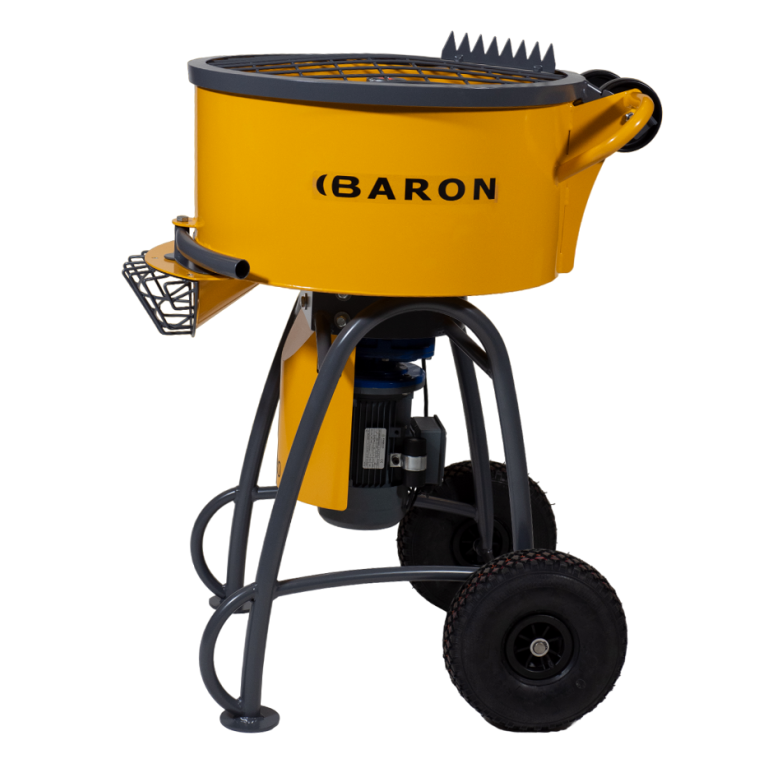

The Baron F80 forced action mixer is the most compact and portable mixer produced by Baron.

This easy to use and highly efficient professional pan mixer features an 80 litre mixing drum and a powerful 2.7Hp/2.0kW low-noise motor, which is available in a choice of 110V* (32Amp) and 240V** (13Amp) electric. The 240V F80 is suitable for use with a standard domestic 13Amp supply.

Forced action mixers have superior mixing capabilities and produce consistent, high-quality finished mixes because they have offset mixing paddles set within a horizontal mixer drum, which enables their mixing blades to reach places where other types of mixers simply cannot. They are commonly used to mix resin bound materials, mortar, wet pour rubber, liquid concrete, screed, plaster, heritage cob and lime, adhesives etc.

The Baron F80 is equipped with high-quality gears, a protective motor shield, an efficient despatch chute, a removeable mixing head with adjustable mixer shovels, variable speed control, an operator safety switch for enhanced safety, a convenient sack knife located on the drum lid for easy loading and transport wheels for easy movement to and around site.

Baron mixers are considered to be the most robust and dependable Forced Action Mixers available.


F80 (110V* or 240V** 1ph) – 2.7Hp/2.0kW. 80 litre drum capacity. 59 litre mixing capacity. 80kgs.

*Minimum 3kVA continuous or 5kVA intermittent transformer. See our transformer guide for more info.

Choose an Option
F80 - 110V
£1,914.00
£1,595.00 Exc. VAT
RRP £3,282.00 Inc. VAT
Qty:-
+
F80 - 240V
£2,545.20
£2,121.00 Exc. VAT
RRP £3,282.00 Inc. VAT
Qty:-
+
Add Additional Blade Set
Qty:-+

(Delivery calculated at checkout)

SKU: Baron-F-80
Share:

Why should you choose a forced action mixer over a conventional rotating drum mixer?

Commonly referred to as a resin mixer, resin-bound mixer or pan mixer, because of the frequency that they are used to mix resin bound materials in particular and their mixing ‘pan’ style horizontal static drum, forced action mixers are not just designed for mixing resin bound materials; although a Baron mixer is considered by many to be an essential when working with resin-bound materials.

A Baron forced action mixer has the power and mixing ability to handle practically any mixing job and meet the many demands of site and the professional contactor.

Whether you are mixing resin, concrete, mortar, liquid screed, wet pour rubber, plaster, heritage cob and lime, or something else, a Baron forced action will produce a more thorough and more consistent high-quality finished mix, with greater efficiency and in a shorter time too (often taking half the time to mix the same volume of material as a rotating drum mixer). They have the power, versatility and capability to provide superior mixing agility on more challenging materials like epoxy with granulated rubber or stone as well.

Baron forced action mixers have gears that allow the mixing speed to be varied to best suit the viscosity, composition and make-up of the material to be mixed. The mixer drum itself remains static, while the mixing head with offset arms and paddles rotates, moving more mix and with greater efficiency than conventional rotating drum cement mixers which relies more on gravity to fold the material over and over on itself to mix it. They also have large, robust motors and mixing heads, which are more equipped to handle more challenging mixing jobs.

Baron mixers are also available with a wide range of mixing vessel capacities, ranging from 80 to 300 litres; making them ideal for small to production sized jobs. So, whether you are looking for a small cement mixer or you regularly mix in large volumes, there is a Baron mixer for you! (for reference, the 120-litre capacity E120 and F120 mixers can mix four standard bags of resin aggregates).

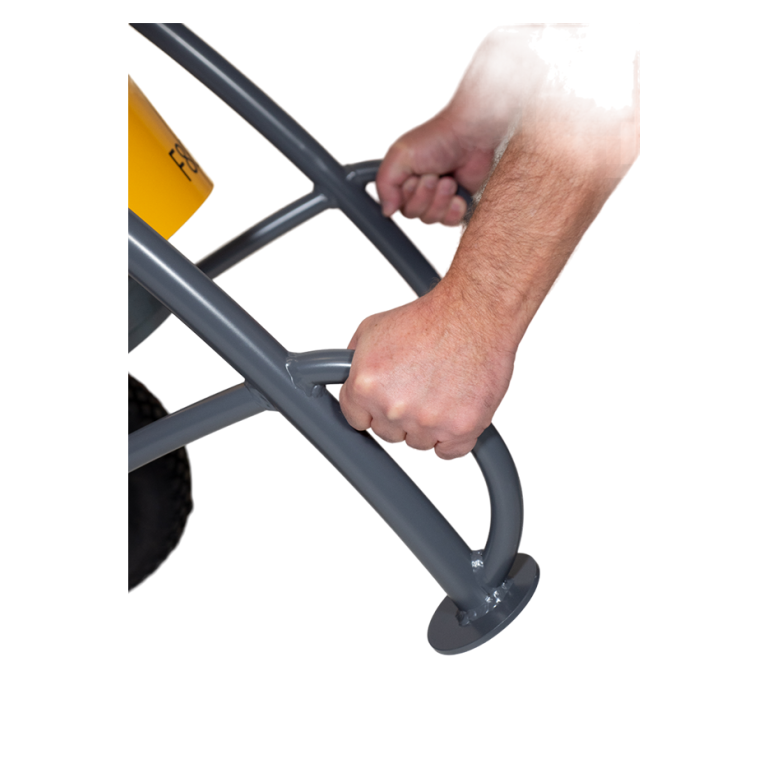

The mixer head of all Baron mixers can easily be removed for cleaning and mixer blades, easily interchangeable and to replace. The mixers themselves are powerful and are equipped with ergonomic handles, stable support legs and large rubber wheels, making them easy to move to and around site. They are also equipped with an efficient despatch chute and self-locking protective mixer drum cover with a safety switch for added operator safety. All F-line models feature four mixing arms, whereas the E120 has three mixing arms.

If you want to produce more consistent, high-quality mixing results in a shorter period of time with greater efficiency to your working day too, isn’t it time you used a Baron mixer?

F80-110V F80-240V
MPN 50040 50000
Motor Power 2.0kW 2.0kW
Motor Voltage 110V-1ph* 240V-1ph*
Fuse 32 Amp 13 Amp
Max Drum Capacity 80 litres 80 litres
Max Mixing Capacity 59 litres 59 litres
Drum Speed 32rpm 32rpm
Width 620mm 620mm
Height 1080mm 1080mm
Depth 850mm 850mm
Weight 80kg 80kg

*Minimum 3kVA continuous or 5kVA intermittent transformerSee our transformer guide for more info.
**The 240V model can be plugged into a standard domestic socket and is ideal for those who work exclusively on residential properties.
