Altrad Belle RPX35/50 20” Reversible Plate (35kN)

Altrad Belle RPX35/50 20” Reversible Plate (35kN)

From £3825.60
From £3188.00 Exc. VAT
RRP From £5276.40 Inc. VAT

In stock

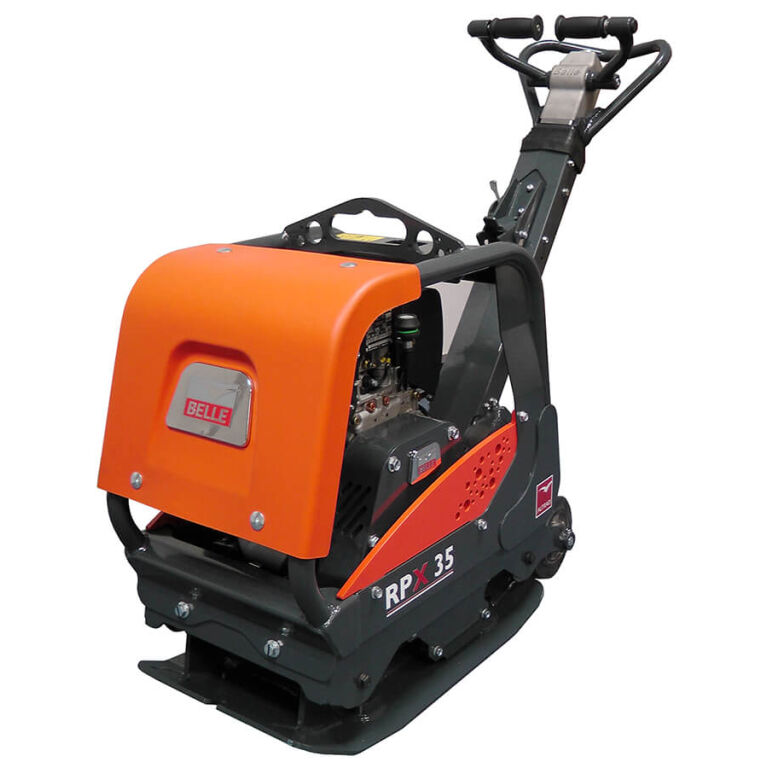

The Belle RPX35/50 is a robust, powerful and high-performance reversible plate compactor with a 20”/500mm wide baseplate and a high compaction force of 35kN. It is ideally suited for those smaller to mid-sized demanding compaction jobs which require a high compaction force, deeper compaction and fast production levels, like driveways, pathways, new construction, renovation works and trench compaction.

This productive heavy-duty forward and reverse compaction plate is built to withstand the rigours of the toughest site conditions and the exacting needs of contractors and the rental industry alike. Although BIG on compaction performance, this compact and manoeuvrable reversible plate has LOW Hand Arm Vibration (HAV) levels, which enable it to be used safely for extended periods of time.

The baseplate of the RPX35/50 is angled for excellent gradeability and increased travel speeds, providing increased productivity and compaction performance. It is also unusually equipped as standard with an integrated wheel kit and foot stand for easy transportation to and around site. It also has a control handle with handle mounted throttle and an additional fixed handle with strong locking for more positive handling and safer operating control.


RPX35/50 – 20”/500mm baseplate. Centrifugal force 35kN. Travel Speed 26m/min. 180kg.

RPX35/50D – 20”/500mm baseplate. Centrifugal force 35kN. Travel Speed 26m/min. 191kg.

RPX35/50DE – 20”/500mm baseplate. Centrifugal force 35kN. Travel Speed 26m/min. 194kg.

The Belle RPX35/50 is available with a choice of petrol, diesel or diesel electric start engines.

Choose Your Model
Petrol or Diesel
Belle RPX compaction plate
Petrol RPX35/50
£3,825.60
£3,188.00 Exc. VAT
RRP From £5276.40 Inc. VAT
Qty:-
+
Belle RPX compaction plate
Diesel RPX35/50D
£4,558.80
£3,799.00 Exc. VAT
RRP From £5276.40 Inc. VAT
Qty:-
+
Belle RPX compaction plate
Diesel RPX35/50DE (electric start)
£5,308.80
£4,424.00 Exc. VAT
RRP From £5276.40 Inc. VAT
Qty:-
+
Add Paving Pad
Qty:-+

(Delivery calculated at checkout)

SKU: RPX35-50
Share:

The RPX35/50 range of forward and reverse compaction plates have a robust design for long-life and are engineered to withstand the rigours of longer periods of use, more demanding compaction tasks and the harshest site conditions.

The control handle is strong and has the throttle control mounted on it for operator convenience and ease of use. It also features an additional fixed handle for improved positive control, a fulcrum which is designed to aid being pulled onto its transport wheels, vibration dampening mounts and a handle lock for safe transportation. A convenient and centrally positioned lift point is easily accessible for safe and easy loading and unloading.

The RPX35/50DE (electric start diesel model) has key ignition and LED warning lamps which eliminates the need for operator training with manual start engines. It has a dry Lithium Ion battery (no liquid acid) which is sealed for life too.

RPX35/50 RPX35/50D RPX35/50DE
MPN 161.9.205 161.9.206 161.9.204
Engine Honda GX200 Hatz 1B20 Hatz 1B20
Engine Type Petrol Diesel Diesel c/w electric start
Engine Power 5.5Hp/4.0kW 4.2Hp/3.1kW 4.2Hp/3.1kW
Plate Size (W x L) 500 x 700mm 500 x 700mm 500 x 700mm
Centrifugal Force 35kN 35kN 35kN
Static Pressure 1104kg/m² 1172kg/m² 1190kg/m²
Frequency 81Hz 81Hz 81Hz
Max Gradient 20° 20° 20°
Travel Speed 26m/min 26m/min 26m/min
HAV level 3.1m/sec² 2.4m/sec² 2.4m/sec²

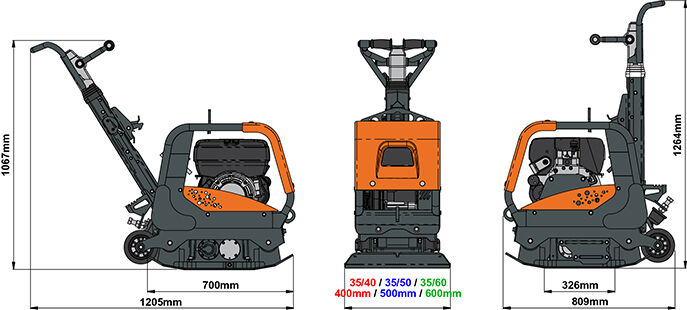

Storage Dimensions (W x H x L) 500 x 1264 x 809mm 500 x 1264 x 809mm 500 x 1264 x 809mm
Weight 180kg 191kg 194kg
