| Muba Beam Lift | |
| Maximum Lifting Capacity | 600kg |
| Maximum Lifting Capacity (2 units) | 900kg |
| Maximum Lift Height | 3 metres |
| Minimum Lift Height | 1.1 metres |
| Lifting Mechanism | Manual screw wind |
| Beam Lift Platform Rotation | 360º |
| Beam Lift Platform Dimensions | 360 x 220 x 110mm |
| Chassis | Galvanised Steel |
| Lifting Hook | Included |
| Wheels | 4 x lockable castors |
| Dimensions (W x L) | 730 x 1570mm |
| Height When Erected | 1.64 metres (rear mast) |
| Height When Folded | 600mm |
| Weight | 82kg |
Muba Beam Lifter – 600kg Capacity


Muba Beam Lifter – 600kg Capacity

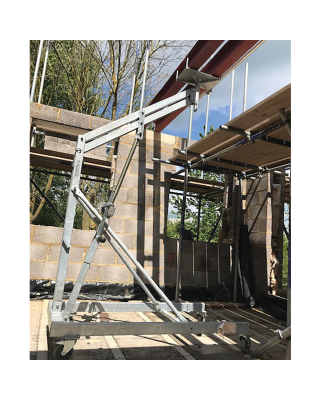

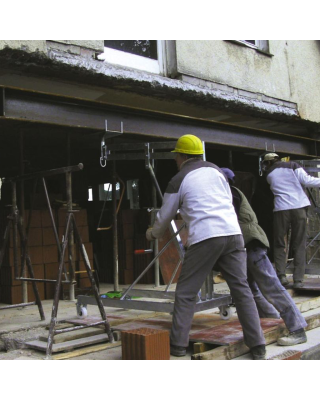

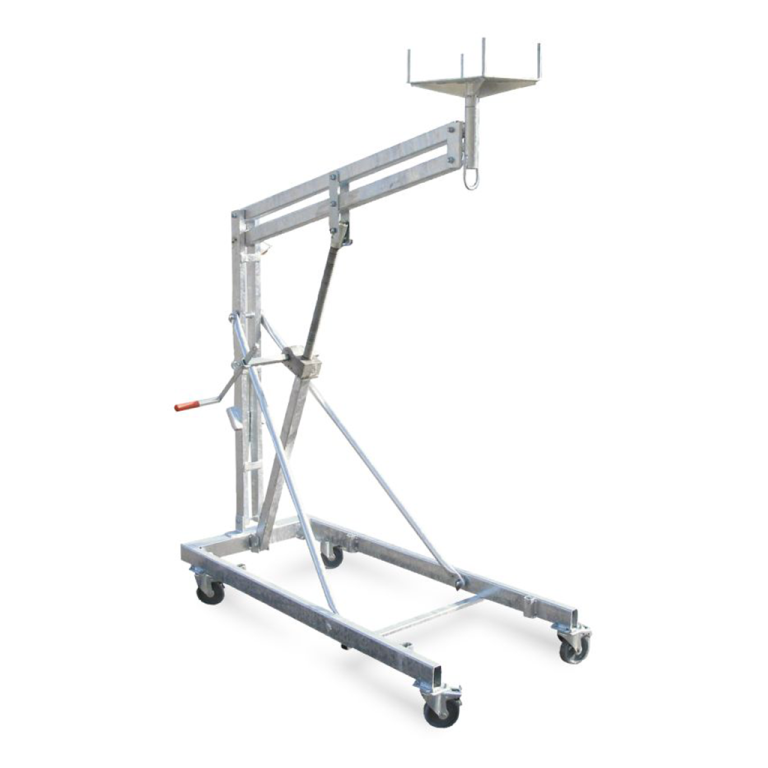

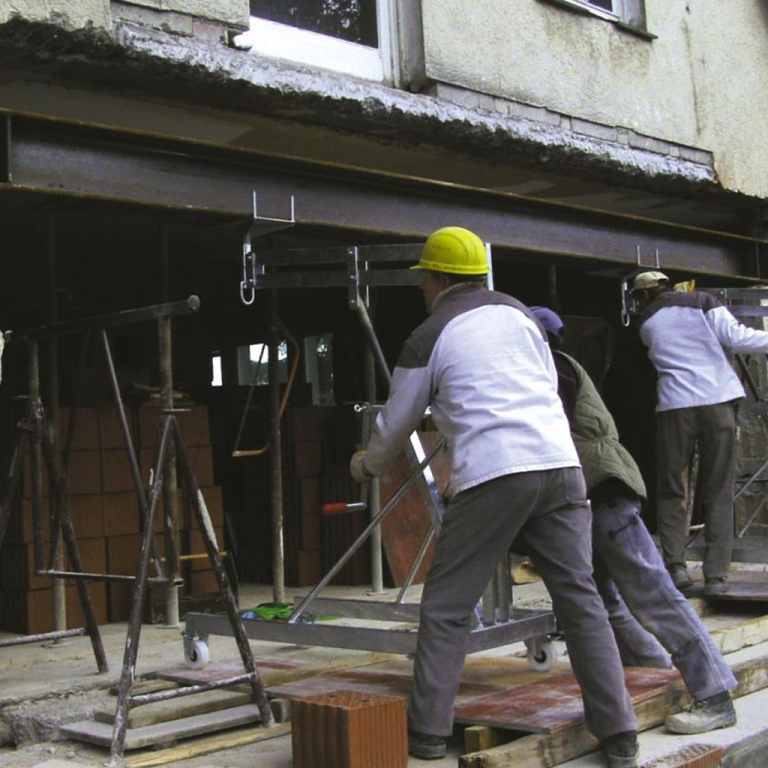

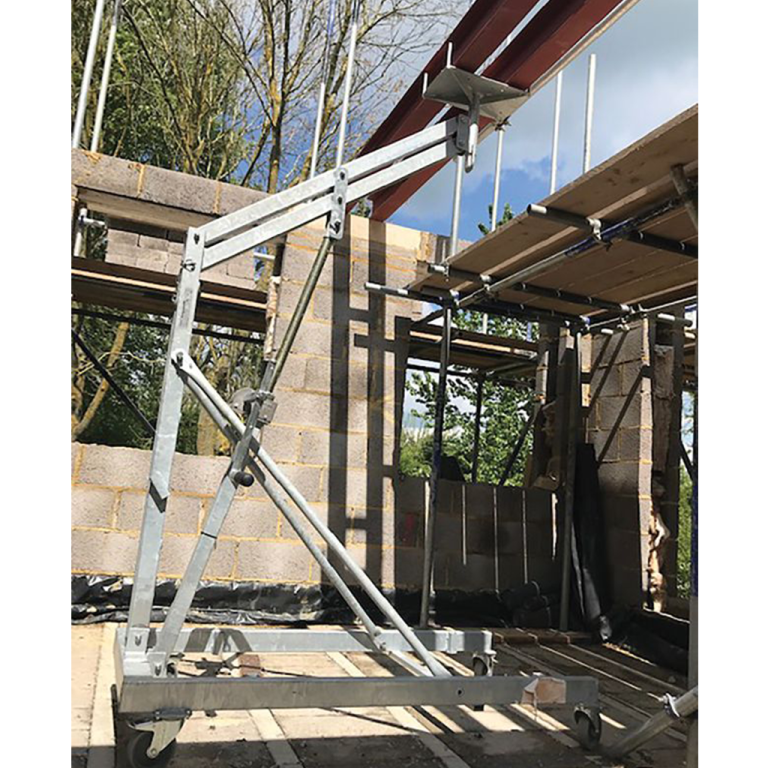

The Muba beam lifting device has a unique user-friendly, labour and money saving design that makes it easy to move, transport and lift beams into their desired position, with one device having a maximum 600kg lift capacity and two devices used in combination up to 900kg (maximum lift height 3 metres). It is ideally suited for contractor and rental use alike.
Unlike competitor beam lifts it has no lift cable, pulleys or guides, instead it favours a manual screw feed mechanism, which allows beams to be conveniently moved accurately both lifted and lowered with greater control and ease as required, until the desired final horizontal fixed position is achieved

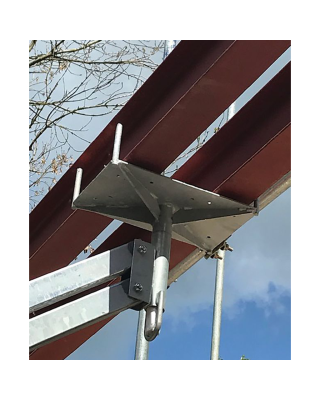

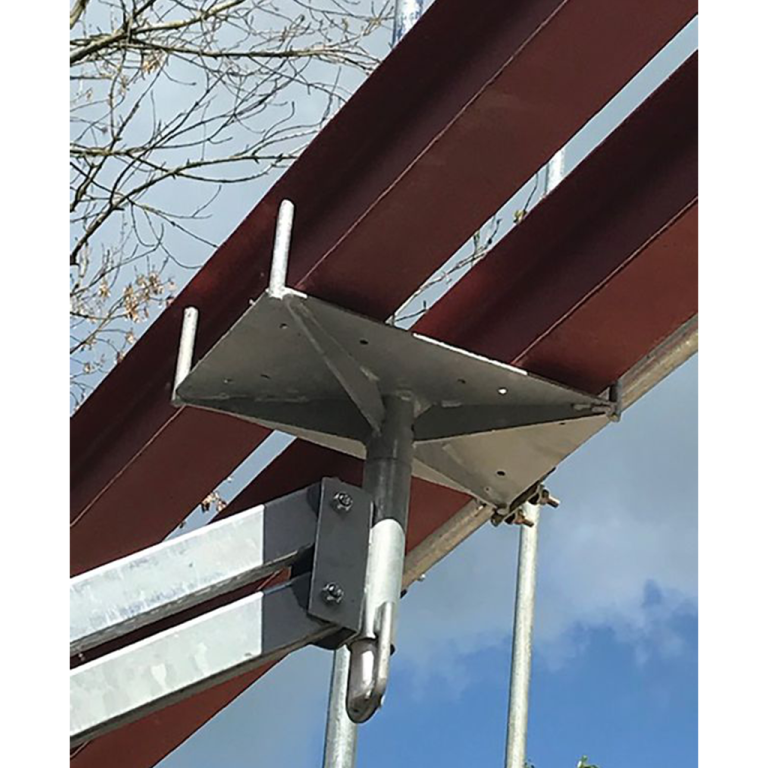

This compact, lightweight, yet robust and stable manual lifting aid is designed for use on flat, hard internal surface and is easy to both navigate and use. It features a convenient 360o rotating beam platform and is mounted on 4 caster wheels, which enables it to be used to safely carry beams through gaps, such as doorways and other openings as little as 730mm/29” wide.

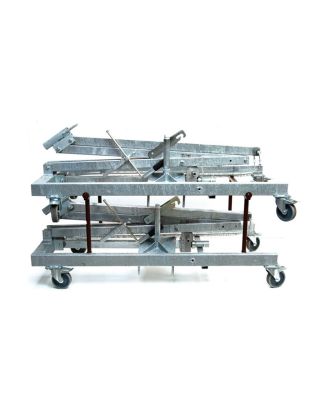

Better still it also to transport and store, with a simple and ingenious stackable design that enables it to be easily dismantled and assembled in a matter of minutes without the use of any tools. When dismantled, it will fit into the rear pf most medium sized vans or estate cars. When fully assembled it weighs just 82kg.The space-saving stackable design (each unit only 600mm when disassembled) also allows up to 5 units to be stacked safely on top of each other too.
