iQ360XT – 110V


iQ360XT – 110V

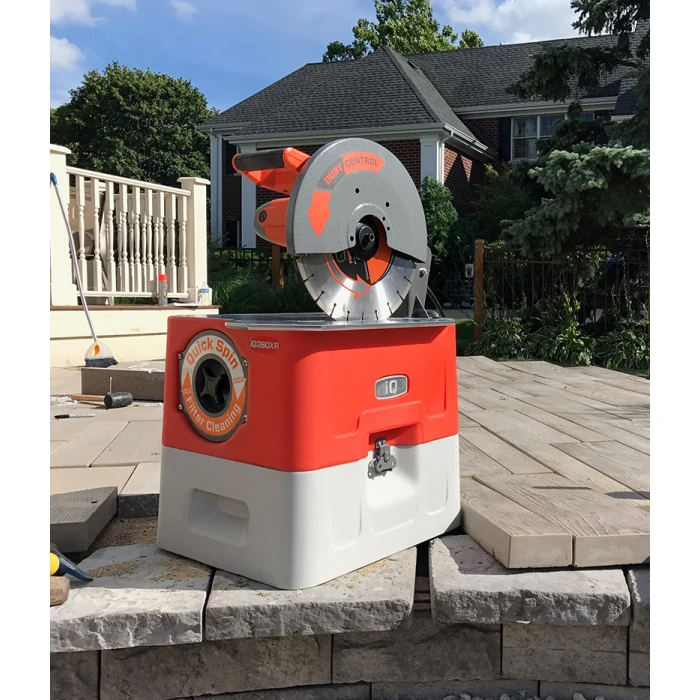

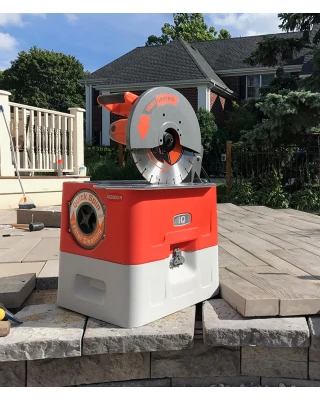

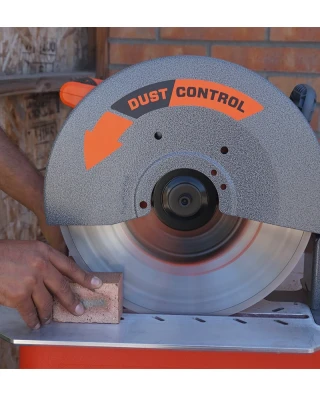

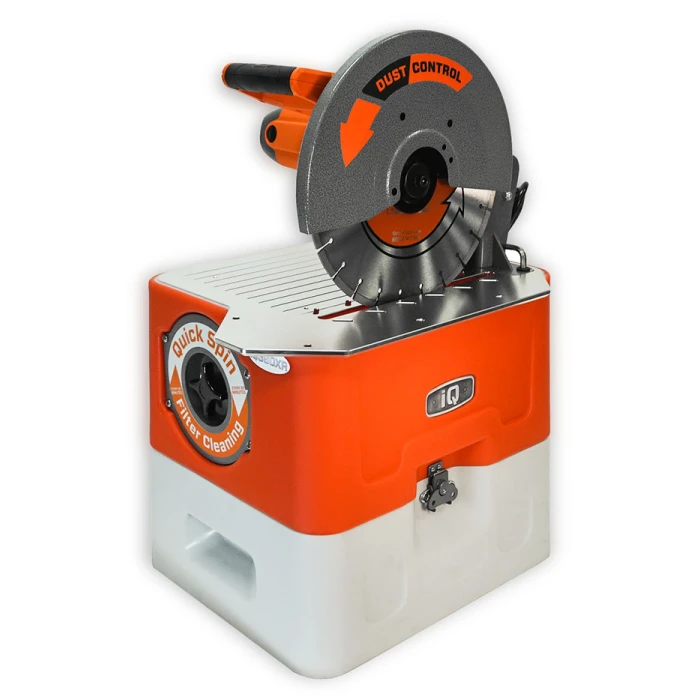

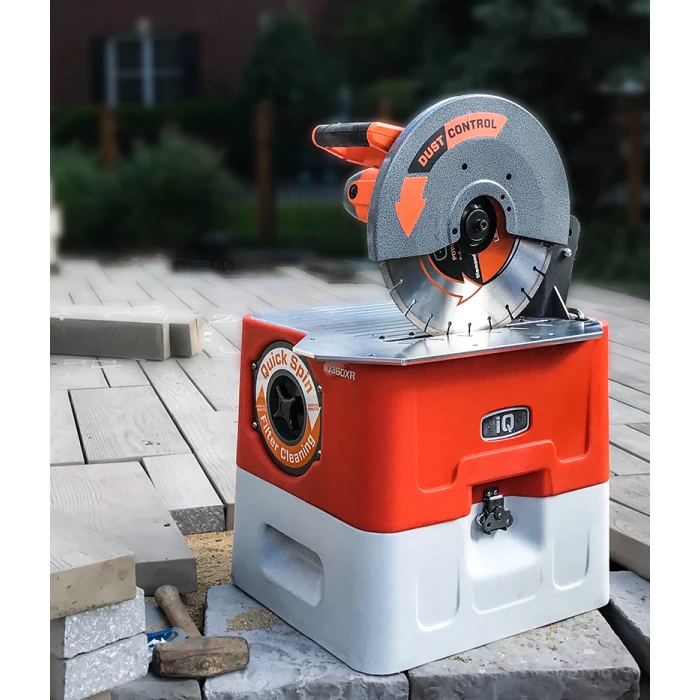

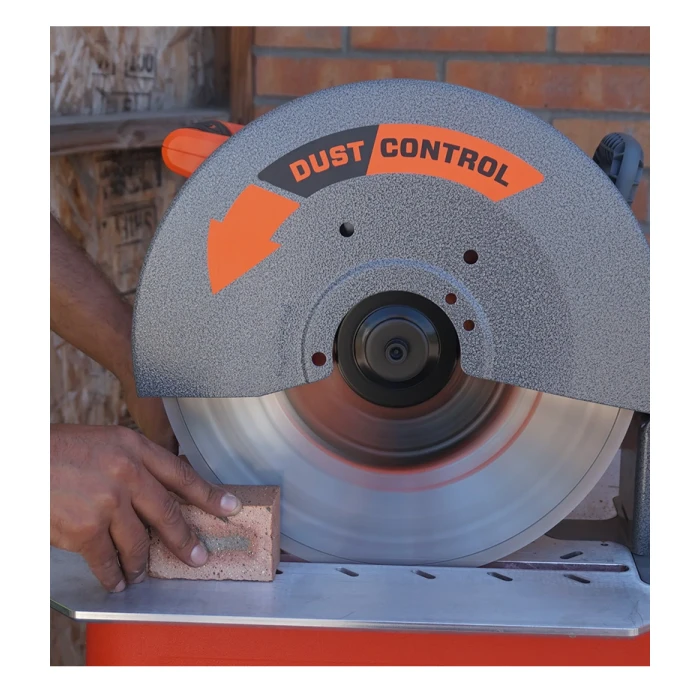

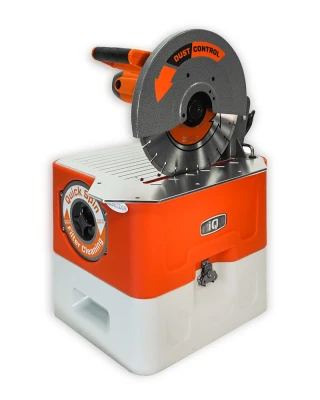

The iQ360XT is the world’s first and only 355mm dry cut masonry saw which is designed to safely trim and cut concrete and a wide range of masonry materials (bricks, pavers and stone) without water, or connection to an external dust extraction system. It features a specially developed iQ Dura Bond cartridge Quick-Spin® filter, with an easy to access 22.7kg capacity dust containment tray that facilitates easy recycling or cleanups at the end of the working day.
This lightweight, compact, highly portable and convenient waterless cutter is equipped with an integrated dust collection system that captures 99.5% of the dust produced when dry cutting, enabling it to be safely used indoors, outdoors, in confined and poorly ventilated spaces, with the added convenience cut exactly where you work for added efficiency.
The iQ360XT can be used at ground level or on any almost flat stable surface, like a work bench or worktop. It can also be safely used in combination with the optional iQ SmartCart combination work platform and transport trolley.
Despite its low weight, this sturdy and reliable cutter is built to withstand the rigours and demands of everyday construction use by professional contractors and their heavy workloads. It is also incredibly easy to maintain and will last for years, with over 100,000 cuts achieved in testing….and counting.
It is additionally equipped with a sealed rocker power switch, soft start technology that reduces Amp draw on start up, trigger lock, a head lock pin and is supplied with a 355mm diameter Gold Standard dry cut diamond blade and an easy to install and remove rolling table with detachable material toggle clamps as standard.
iQ360XT (240 or 110V 1ph) – 1.8kW. 355mm blade capacity.95mm max depth of cut. 30kgs.
240V model has a 13 Amp plug and runs @ 6 Amps. 110V model has a16 Amp plug and runs @ 12.5 Amps, requiring a minimum 3kVA continuous, or 5kVA intermittent supply.
The iQ360XT is available in 240 or 110V single phase electric.
Optional accessories and consumables for the iQ360XT include a choice of custom-engineered diamond blades and iQ SmartCart combination transport trolley and work platform.
| iQ360XT – 240V | iQ360XT – 110V | |
| Voltage | 240V 1-phase | 110V 1-phase |
| Motor Power | 1800W | 1800W |
| Amperage | 13 Amps | 13 Amps |
| Vacuum Motor Power | 500W | 500W |
| Total System Power | 2300W | 2300W |
| Minimum Transformer Required | N/A | 3kVA continuous or 5kVA intermittent |
| Maximum Blade Diameter | 355mm | 355mm |
| Max Depth of Cut (with rolling table) | 95mm | 95mm |
| Filter Type | iQ Dura Bond Cartridge | iQ Dura Bond Cartridge |
| Dust Collection Capacity | 22.7kg | 22.7kg |
| Blade included | Yes. 14″ iQ Gold Masonry Blade | Yes. 14″ iQ Gold Masonry Blade |
| Dimensions (W x H x L) | 432 x 762 x 508mm | 432 x 762 x 508mm |
| Weight | 30kg | 30kg |
