Barreto 30SG 19” Hydraulic Tracked Stump Grinder – Petrol

Barreto 30SG 19” Hydraulic Tracked Stump Grinder – Petrol

£28,853.70
£24,044.75 Exc. VAT
£33,592.80 Inc. VAT

In stock

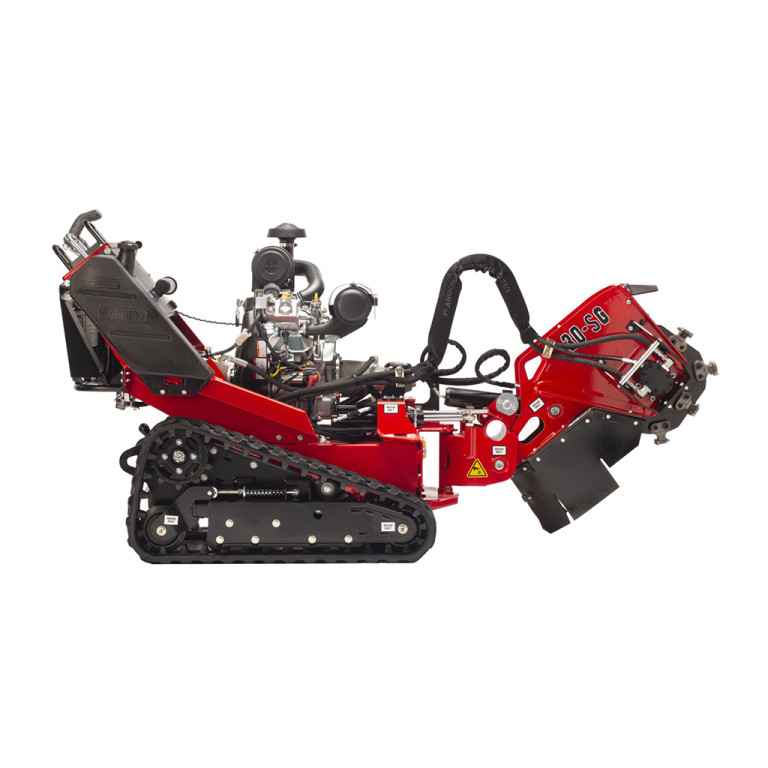

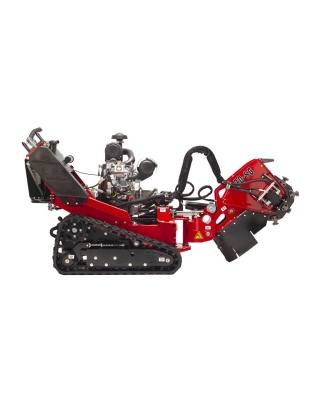

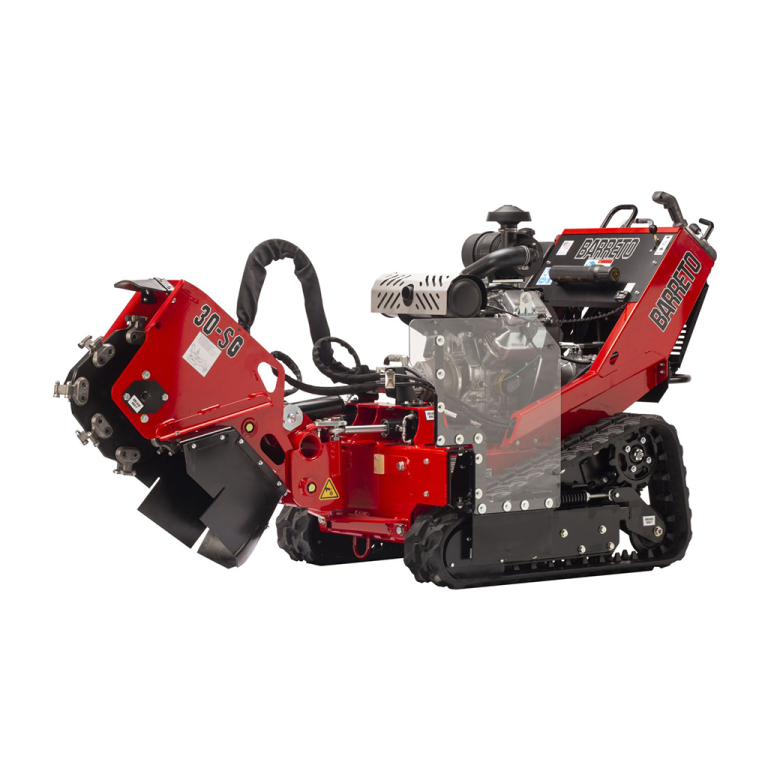

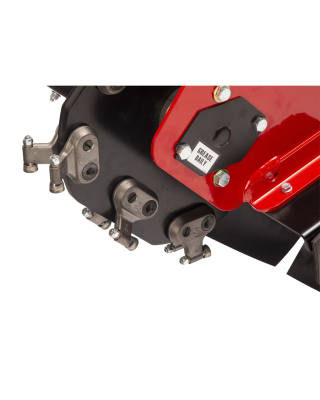

The Barreto 30SG is a high-performance professional tracked stump grinder with a hydraulically-driven 19.2” /489mm diameter cutter wheel fitted with 16 x 700 Series Greenteeth, which is driven by 31Hp Briggs & Stratton Vanguard V-twin engine and features dashboard mounted fingertip controls that provide carefully controlled movement of the cutter wheel lift and swing increased efficiency and safety. It has a maximum grinding height of 810mm above ground level and 306mm below ground level.

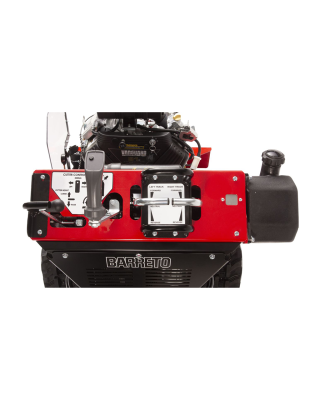

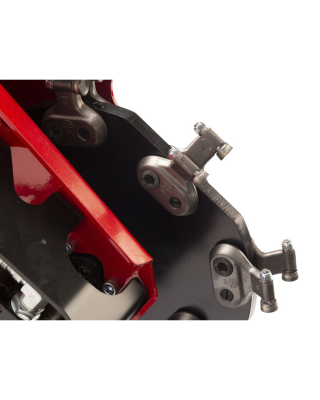

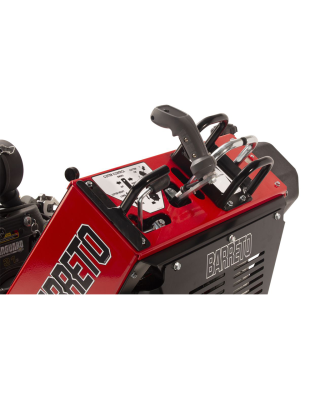

This robust, safe, highly-manoeuvrable, easy to use and high-quality walk-behind tracked grinder is manufactured in the USA and is suitable for domestic and commercial use alike. Furthermore, the Baretto 30SG is also easy to maintain, with no belts or chains and a cutting system which allows you conveniently to easily turn each cutting tooth once they become dull, even in remote locations. In addition, the engine is coupled to two gear pumps, with the larger pump powering the cutter wheel and the smaller pump powering the lift and swing of the cutter head, while the reliable tracks are driven by independent hydrostatic static pumps with counterbalance valves on each track drive, preventing the track motors from slipping whilst the cutting head is engaged. The cutter head itself is controlled by a joystick and levers mounted on the console of the grinder.


BAR30SG (Vanguard V-Twin Petrol) – 896cc. 489mm/19.2” cutting disc c/w 16 x teeth. 777kg.

(Delivery calculated at basket)

SKU: Barreto-30SG
Barreto 30SG 19” Hydraulic Tracked Stump Grinder – Petrol
Engine Briggs & Stratton Vanguard V-Twin
Engine Fuel Type Petrol
Engine Displacement 896cc / 31Hp
Engine Tank Capacity 20 litres
Engine Oil Capacity 2.2 litres
Engine Starting Method Electric Start
Hour Meter Included
Drive System Tracked Hydraulic
Steering Controls Levers
Cutting Wheel Diameter 19.2″ / 489mm
Cutting Teeth 16 x Greenteeth 700 Series
Cutting Head Drive Hydraulic
Cutting Head Engagement Button on joystick control
Cutter Head Sweep Joystick Control
Depth Control Lever
Ground Brake Included
Handle Height Adjustment Fixed
Hydraulic Tank Capacity 53 Litres
Instruction Holder Included
Clutch Not Applicable
Grinding Height 810mm Above Ground Level
Grinding Height 306mm Below Ground Level
Length 2500mm (cutting head straight)
Width 905mm
Height 1262mm
Track Width 180mm
Side Guard Included (folding)
Weight 777kg
