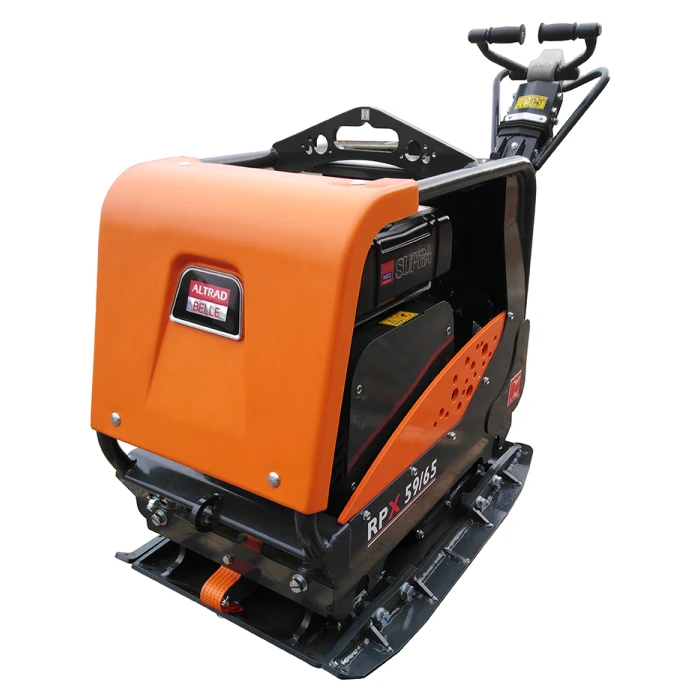

Altrad Belle RPX59/65 26” Reversible Plate (59kN)

Altrad Belle RPX59/65 26” Reversible Plate (59kN)

From £7,671.60
From £6,393.00 Exc. VAT
RRP From £12,282.00 Inc. VAT

In stock

The Belle RPX59/65 is a robust, powerful and high-performance heavyweight reversible plate compactor with a 26”/650mm wide baseplate and a high compaction force of 59kN. It is designed for those demanding compaction tasks that require a high compaction force for deep compaction and high productivity.

This strong, reliable, fast-operating and productive heavy-duty forward and reverse plate is built to withstand the rigours of the toughest site conditions and features an angled baseplate for excellent gradeability and travel speeds. It is suitable for contractor and rental use alike.

The RPX59/65 is equipped with a low HAV handle which provides extended safe usage for increased productivity and an hour meter as standard. It also has a control handle with handle mounted throttle and an additional fixed handle with strong locking for more positive handling and safer operating control. A choice of optional extension plates are also available to further increase the standard 650mm working width of the RPX59/65.


RPX59/65 – 26”/650mm baseplate. Centrifugal force 59kN. Travel Speed 28m/min. 360kg.

RPX59/65D – 26”/650mm baseplate. Centrifugal force 59kN. Travel Speed 28m/min. 412kg.

RPX59/65DE – 26”/650mm baseplate. Centrifugal force 59kN. Travel Speed 28m/min. 442kg.

The Belle RPX59/65 is available with a choice of petrol, diesel or diesel electric start engines.

Choose Your Model
Petrol or Diesel
Petrol - RPX59/65
£7,671.60
£6,393.00 Exc. VAT
RRP From £12,282.00 Inc. VAT
Qty:-
+
Diesel - RPX59/65
£10,834.80
£9,029.00 Exc. VAT
RRP From £12,282.00 Inc. VAT
Qty:-
+
Diesel - RPX59/65DE (Electric Start)
£11,734.80
£9,779.00 Exc. VAT
RRP From £12,282.00 Inc. VAT
Qty:-
+
Add Extension Plates
Altrad Belle RPX 75mm Extension Plates
£278.40
£232.00 Exc. VAT
RRP From £12,282.00 Inc. VAT
Qty:-
+
Altrad Belle RPX 125mm Extension Plates
£302.40
£252.00 Exc. VAT
RRP From £12,282.00 Inc. VAT
Qty:-
+

(Delivery calculated at checkout)

SKU: RPX-59/65
Share:

The RPX59/65 range of forward and reverse compaction plates have a robust design for long-life and are engineered to withstand the rigours of longer periods of use, more demanding compaction tasks and the harshest site conditions.

The control handle is strong and has the throttle control mounted on it for operator convenience and ease of use. It also features an additional fixed handle for improved positive control, a fulcrum which is designed to aid being pulled onto its transport wheels, vibration dampening mounts and a handle lock for safe transportation. A convenient and centrally positioned lift point is easily accessible for safe and easy loading and unloading.

The RPX59/65DE (electric start diesel model) has key ignition and LED warning lamps which eliminates the need for operator training with manual start engines. It has a dry Lithium Ion battery (no liquid acid) which is sealed for life too. The petrol engine version features a Honda GX390 engine with a Cyclonic Air Filter fitted as standard.

RPX59/65 RPX59/65D RPX59/65DE
MPN 161.9.214 161.9.212 161.9.223
Engine Honda GX390 Hatz 1B50 Hatz 1B50
Engine Type Petrol Diesel Diesel c/w electric start
Engine Power 9.4Hp/7.0kW 10.7Hp/7.9kW 10.7Hp/7.9kW
Plate Size (W x L) 650 x 945mm 650 x 945mm 650 x 945mm
Centrifugal Force 59kN 59kN 59kN
Static Pressure 1241kg/m² 1420kg/m² 1524kg/m²
Frequency 70Hz 70Hz 70Hz
Max Gradient 20° 20° 20°
Travel Speed 28m/min 28m/min 28m/min
HAV level 3.1m/sec² 2.4m/sec² 2.4m/sec²
Storage Dimensions (W x H x L) 650 x 1287 x 1088mm 650 x 1287 x 1088mm 650 x 1287 x 1088mm
Weight 360kg 412kg 442kg
