Altrad Belle Premier 100XT 5/3½ Site Mixer

Altrad Belle Premier 100XT 5/3½ Site Mixer

From £3,612.00
From £3,010.00 Exc. VAT
RRP from £4,777.20 Inc. VAT

In stock

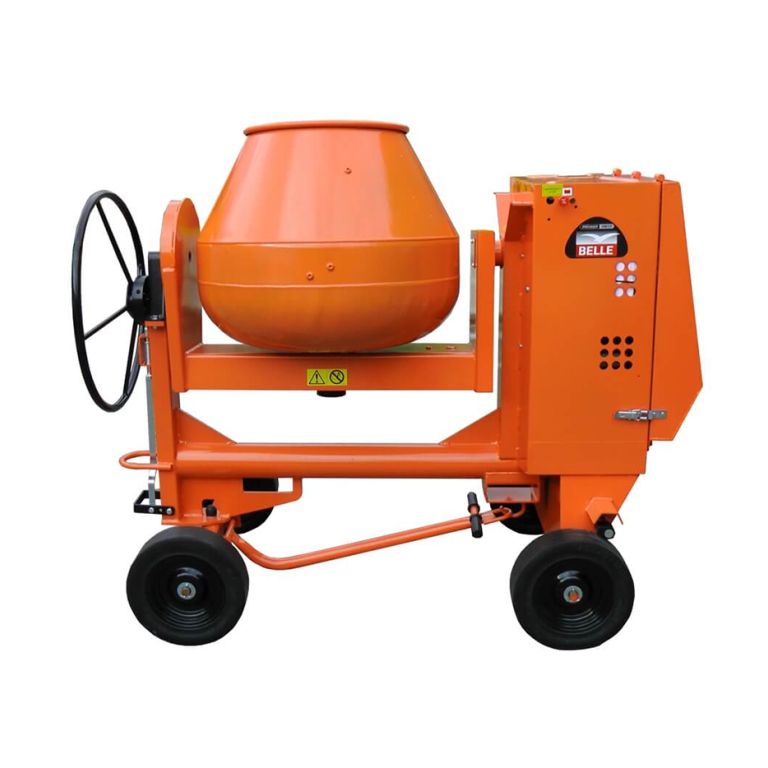

The Belle Premier 100XT is a robust, extra heavy-duty site mixer designed for mixing larger batches and more prolonged, more demanding use. This high specification, high performance upright mixer is designed to withstand the toughest site conditions and is ideal for both professional and rental use.

With its large 250/110L drum/mixing capacity the durable and advanced 100XT is perfect for mixing larger batches of concrete and mortar. It features an extra heavy-duty and robust chassis with four heavy-duty wheels, an extra rigid and reinforced drum, a sealed heavy-duty gearbox (for reduced maintenance), a foot operated tip-lock and a large tip wheel an easy to use parking brake.


The Belle Premier 100XT is available with a 1phase 110V electric motor and a Yanmar diesel electric start engine.

Premier 100XT PM08 (110V 1ph) – (2.0Hp/1.5kW). Ideal for site use. Minimum 32A, 5kVA continuous supplySee our transformer guide for more info.

Premier 100XT PM20V (Yanmar Diesel Tier V) – (3.4Hp/2.5kW). Ideal for virgin sites, use in remote locations or areas with no access to a suitable power source.

Pick Your Model
Premier 100XT - 110V Electric
£3,612.00
£3,010.00 Exc. VAT
RRP from £4,777.20 Inc. VAT
Qty:-
+
Premier 100XT - Yanmar Diesel
£4,848.00
£4,040.00 Exc. VAT
RRP from £4,777.20 Inc. VAT
Qty:-
+

(Delivery calculated at checkout)

SKU: 100XT
Share:

Although the 100XT is made for mixing larger batches, it purposely has an extra short wheel base so that is can safely be loaded/unloaded from compact vehicle tail lifts. This greatly assists the portability of the mixer, as do the four large, wide profile rubber transport wheels, mixer pull handle and incorporated fork lift eyes, all designed to aid product movement to and around site, as well as to be operated in harsh conditions.

In order to withstand the rigours of the worst site conditions, the 100XT has an extra heavy-duty and robust chassis, which is not only strong, but easy to clean too. It features a high specification, sealed, low maintenance, heavy-duty gearbox and an extra rigid and reinforced drum to prevent distortion. The ‘Quick Mix’ paddle drums have enhanced mixing performance and have a bolt in/out interchangeable design, which enables them to be replaced with relative ease and speed when necessary.

The large foot operated tip-lock and large tip wheel provide both added operator safety and control with large mixes.

The diesel powered model is equipped with a Stage 5 compliant Yanmar L48 electric start diesel engine. The corresponding drive units for both the electric and diesel models are contained in a lockable stay cool engine compartment for security and lid down operation for enhanced operator safety.

100XT 110V 100XT Diesel
MPN PM08 PM20V
Motor/Engine 110V Electric Yanmar Diesel Tier V(Electric Start)
Fuse 32A (1-phase) n/a
Power 2.0Hp/1.5kW 3.4Hp/2.5kW
Minimum Transformer
5kVA Continuous* n/a
Maximum Drum Capacity 250ltr 250ltr
Mixing Capacity 110ltr 110ltr
Drum Speed 19rpm 19rpm
Paddle Type Gated Paddle Design Gated Paddle Design
Dimensions (L x W x H) 1765 x 900 x 1475mm 1765 x 900 x 1475mm
Weight 305.5kg 335kg
Noise Level 87dB 99dB
